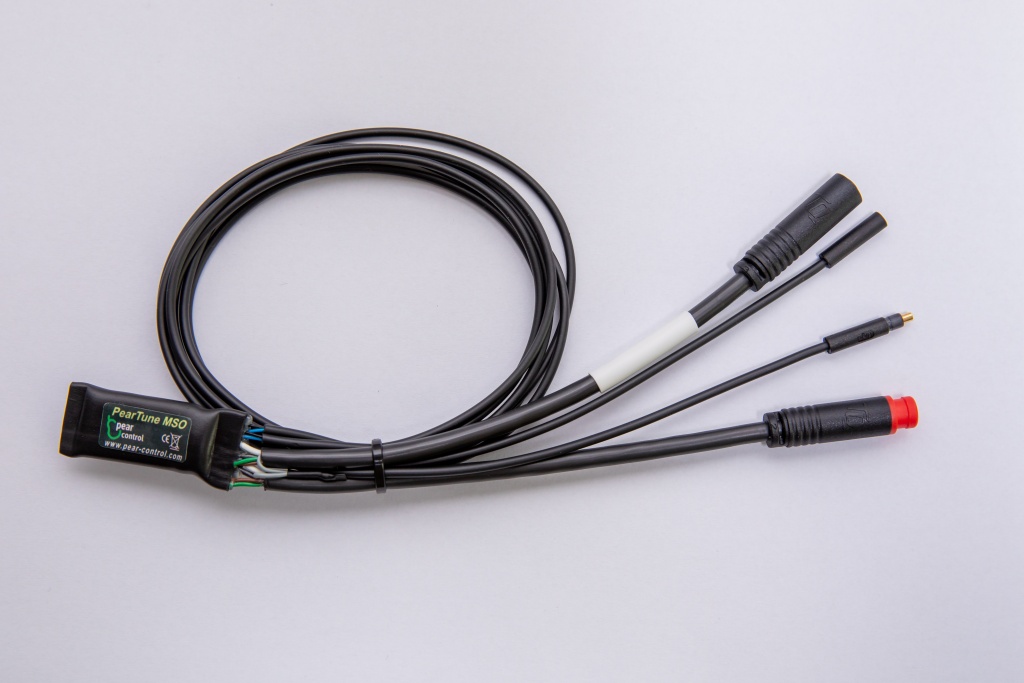

PearTune MSO Tuning e-bike TQ HPR50

Detailed product description:

PearTune is connected to the e-bike system with compatible and original connectors. The  MSO  does  not  need  to  be  configured  manually.  The  entire configuration and adaptation to the paticular e-bike is done automatically. The  MSO  is  connected  in  between  the  magnetic  speed  sensor  and  the motor  unit,  and  in  between  the  display and  the  motor  unit.  MSO  is powered from the display connector. All readings like actual speed, max speed, average speed, distance etc. are correctly displayed. The MSO can be activated  or  deactivated  anytime  during  the  ride  by  pressing  +-+- buttons. The device state is indicated by a certain element on the display, so the rider always know whether the device is active or not.Thanks to original connectors the e-bike tuning can be deinstalled without any signs and original Brose diagnostics (highest level) did not find any signs of the device after removal.The only difference is that from the moment of installation you, not your bike, determine how fast you go. The maximum speed is limited only by the pedaling frequency.

Usage

The MSO-TQ-HPR50 can be activated or deactivated anytime by  pressing + + - - or - - + + or + - + - or - + - + buttons.

Manufacturer

PearControl s.r.o.

Příkopy 1889

393 01 Pelhřimov

CZECH REPUBLIC

Technical parameters

Dimension without wiring: 21 x 40 x 12mm

Supply voltage range: 5 - 15 V

Maximum current consumption: 100 mA

Maximum power usage: 1.5W

Mass: cca 30g

The voltage is lower then 20 V in all device and on I/O pins too

Legislation

The manufacturer reserves the right to make changes. This manual is an integral  part  of  the  equipment  sold.  By  using  the  equipment  PearTune MSO its user agrees that he will use the modified e bike in accordance with the applicable legislation of the target country and so does even off-road; therefore, he is free to use it only on his own land or on land designated for  that  purpose.  The  user  also  acknowledges  that  the  operation  of bicycles outside their own land or land designated for this purpose with deactivated,  but  installed  equipment  PearTune  MSO  may  not  be  in compliance  with  legislation.  The  manufacturer  does  not  warrant  non-infringement of bicycle warranties or impossibility of damage or blockage of the e-bike system. The manufacturer disclaims liability for any damages, whether  in  health  or  property  associated  with installing  or  using this product.

The  manufacturer  holds  the  certificate  of  electromagnetic  compatibility testing  -  Compliance  with  EU  regulations  (CE  marking)  aswell  as  the certificate of restriction of the use of Hazardous Substances (RoHS label).
